11.6" recessed intercom

A design as sleek as your entrance

GET YOUR QUOTE

Meet the 11.6” recessed

Deliver a safe & seamless access experience at larger entryways with the 11.6” recessed video intercom.

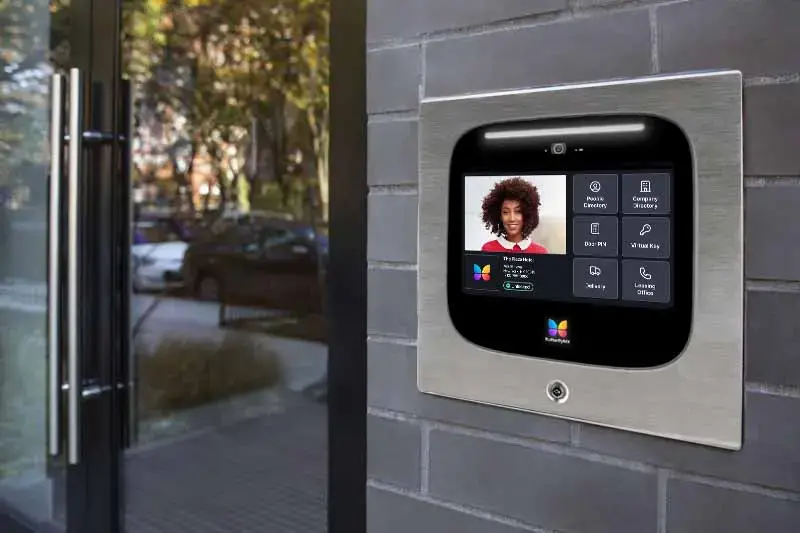

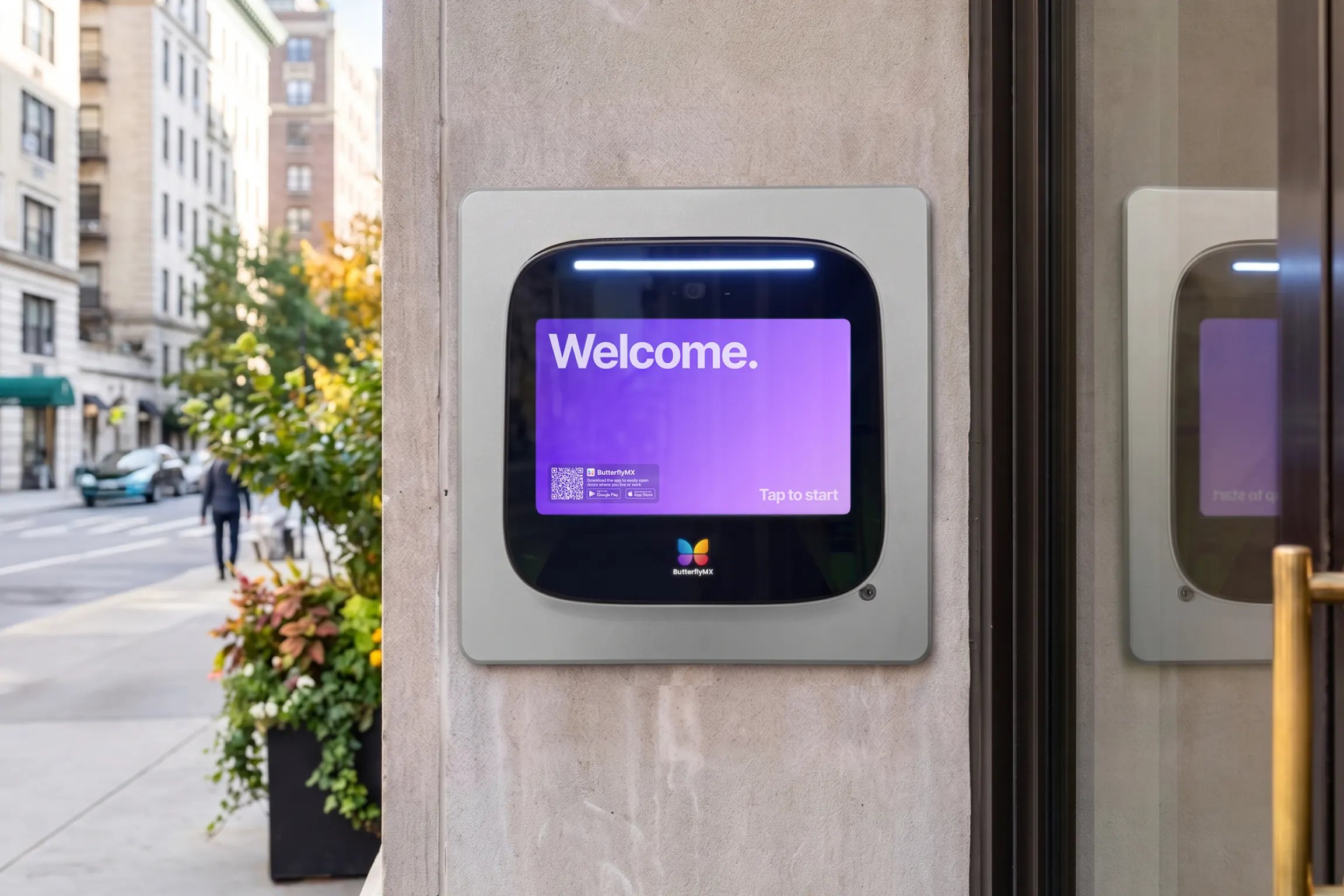

Mounted in a wall or pedestal, the 11.6” recessed video intercom is a showstopper at any door or gate.

Don’t let this intercom’s elegant touchscreen design fool you — it’s ready to withstand even the harshest weather. The 11.6” recessed is protected by polycarbonate glass and a weatherized casing, so you can rest assured your intercom is safe in rain, snow, wind, or sun.

Without expensive building wiring or in-unit hardware, the 11.6” recessed reduces your installation costs while delighting your residents with smartphone-based property access.

Specifications

General
  • IP65 rated for dust, water, and chemical resistance

  • Bluetooth connectivity

  • Min/max temperature: min: -30ºC / -22ºF max: +60 ºC / + 140 ºF

  • Infrared proximity sensors for motion detection

  • Two USB 3 ports

  • One DisplayPort

  • One Serial port

Entry
  • Four dry contact relays with adjustable timings

  • 26-bit Wiegand format card reader

  • Wiegand output terminals for connecting internal card reader to access control system

Power
  • Standard power socket: NEMA 5-15
  • Panel input voltage: 24VDC
  • Standard power consumption: 31W at 24VDC input
  • Maximum power consumption: 65W at 24VDC input
  • Relay max switching current: 5A, relay max
  • Switching power: 1250W
  • Coordinate dedicated electrical circuit on UPS (power conditioned)
Video
  • Adaptive bitrate for up to 1080p HD video transfer

  • 90° field of view

  • Adjustable pan, tilt, and zoom

Touchscreen
  • Antiglare polycarbonate display

  • Capacitive 10-point multitouch

  • Auto-adjusting LED with up to 1000 Nits of brightness

  • Vandal resistant (tested to withstand 225g drop ball test from 1.6 meters)

  • Resolution: 1024 x 600

Network
  • Dual gigabit ethernet ports
  • IP assigned by DHCP (Static IP assignment available)
  • Wireless capabilities

NETWORK REQUIREMENTS GUIDE

11" Recessed Video Intercom
