Meet the 11.6” surface

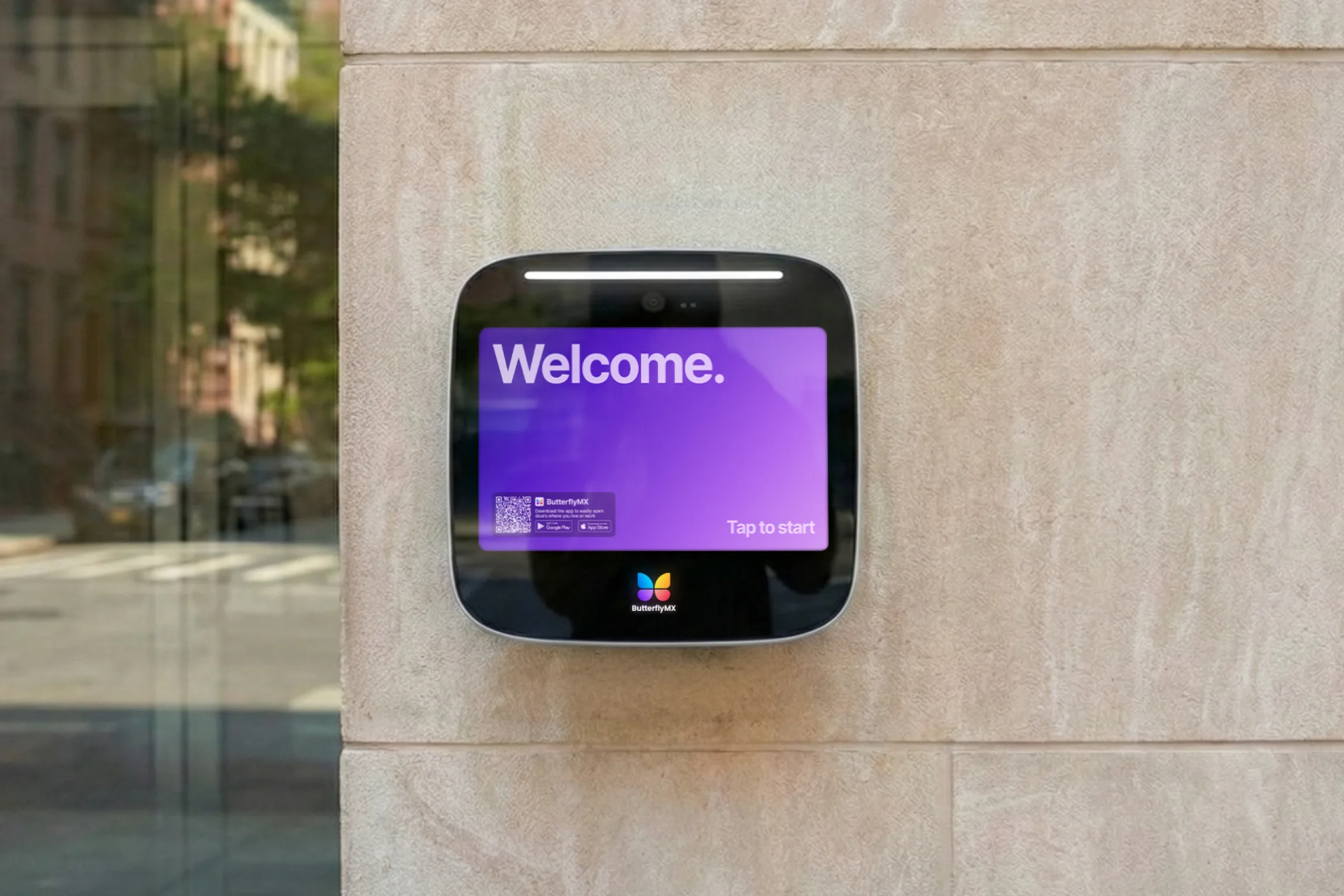

Mount the 11.6” surface video intercom on a wall or pedestal to elevate any entrance.

Let our 11.6” surface-mounted intercom welcome your residents and guests inside. Designed for larger entryways, this intercom simplifies property access at your door or gate.

With an intuitive touchscreen, polycarbonate glass construction, and a weatherized casing, the intercom is easy to use but difficult to damage.

The 11.6” surface gives residents the power to open doors, video chat with visitors, and accept deliveries from anywhere in the world. Plus, you’ll avoid the cost of wiring your entire building and installing hardware in every unit.

Specifications

General
  • IP65 rated for dust, water, and chemical resistance

  • Bluetooth connectivity

  • Min/max temperature: min: -30ºC /-22ºF max: +60 ºC /+ 140 ºF

  • Infrared proximity sensors for motion detection

  • Two USB 3 ports

  • One DisplayPort

  • One Serial port

Entry
  • Four dry contact relays with adjustable timings

  • 26-bit Wiegand format card reader

  • Wiegand output terminals for connecting internal card reader to access control system

Power
  • Standard power socket: NEMA 5-15

  • Panel input voltage: 24VDC

  • Standard power consumption: 31W at 24VDC input

  • Maximum power consumption: 65W at 24VDC input

  • Relay max switching current: 5A, relay max

  • Switching power: 1250W

  • Coordinate dedicated electrical circuit on UPS (power conditioned)

Video
  • Adaptive bitrate for up to 1080p HD video transfer

  • 90° field of view

  • Adjustable pan, tilt, and zoom

Touchscreen
  • Antiglare polycarbonate display

  • Capacitive 10-point multitouch

  • Auto-adjusting LED with up to 1000 Nits of brightness

  • Vandal resistant (tested to withstand 225g drop ball test from 1.6 meters)

  • Resolution: 1024 x 600

Network
  • Dual gigabit ethernet ports
  • IP assigned by DHCP (Static IP assignment available)
  • Wireless capabilities

NETWORK REQUIREMENTS GUIDE

12 Surface Video Intercom
