7" recessed intercom

Make a statement in small spaces

GET YOUR QUOTE

Meet the 7” recessed

Maximize curb appeal at smaller entrances with the 7” recessed video intercom.

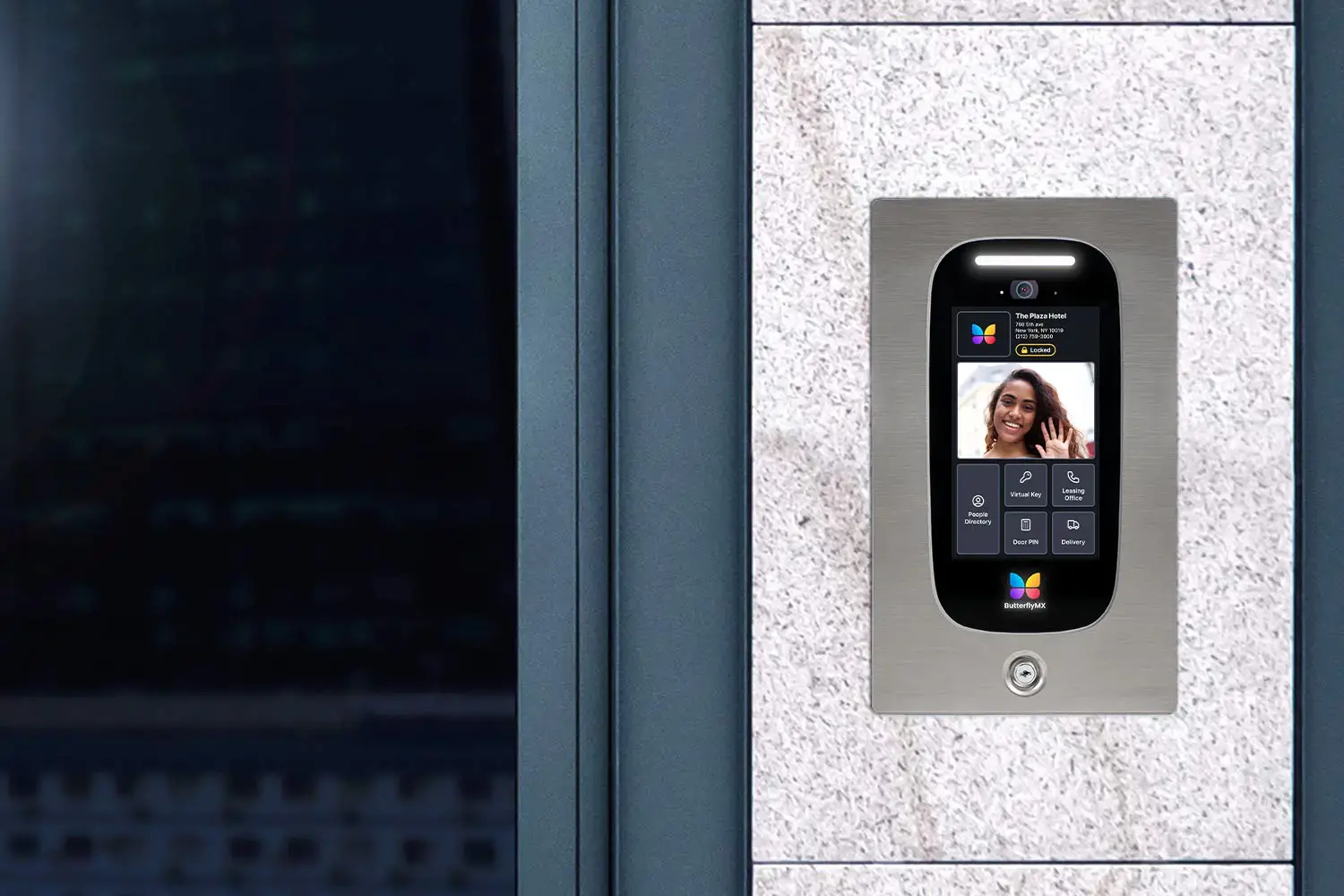

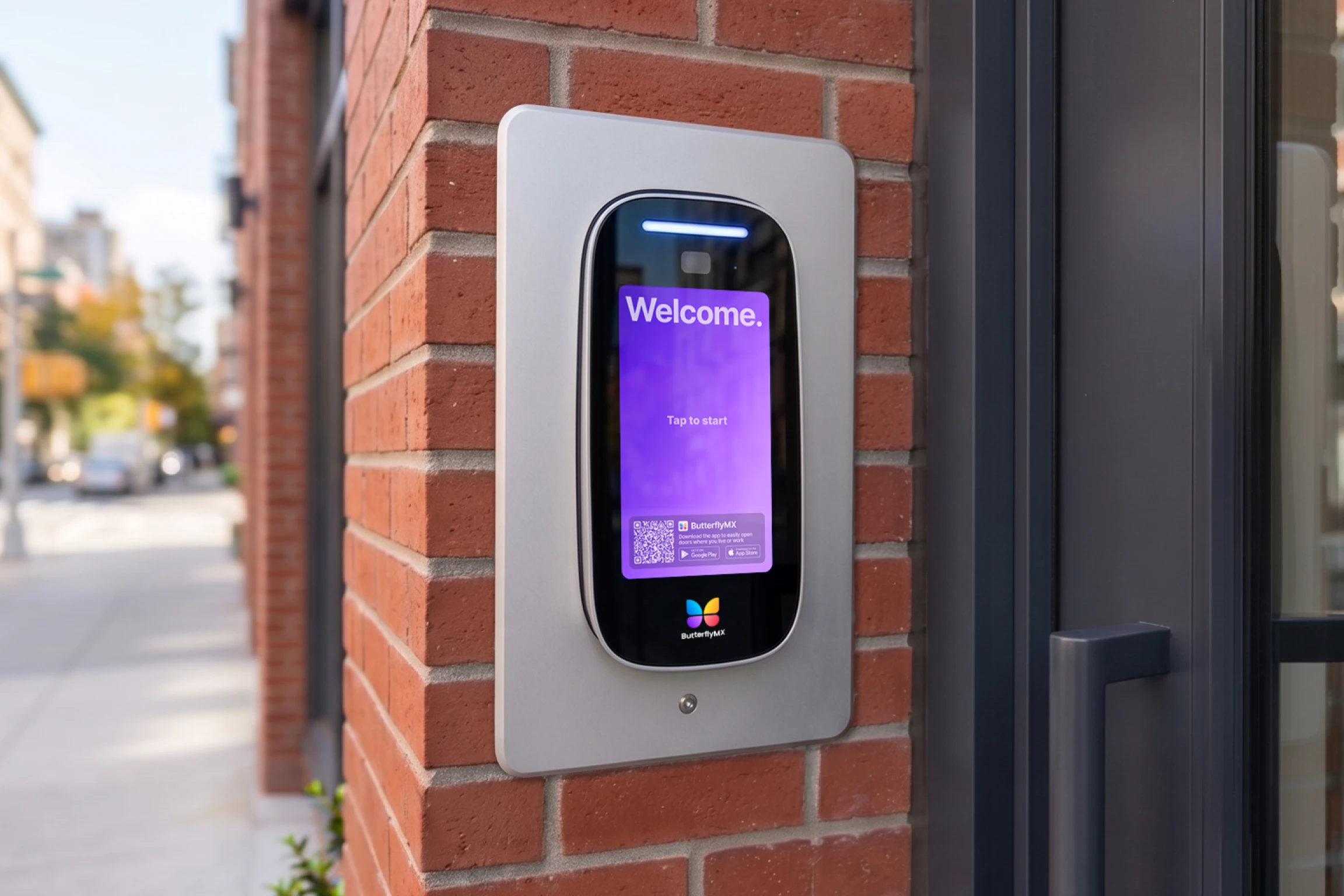

First impressions start at your front door, so choose an intercom that’s as polished as your property. Our 7” recessed intercom mounts seamlessly in the wall or pedestal at your entryway.

With a sleek touchscreen protected by polycarbonate glass and weatherized casing, the 7” recessed intercom is safe from even the harshest elements, rain or shine.

Paired with our powerful mobile app, this intercom simplifies property access for your residents while ensuring they never miss a visitor or delivery again. And you’ll avoid the hassle and expense of running building wiring or installing in-unit hardware.

Specifications

General
  • IP65 rated for dust, water, and chemical resistance

  • Bluetooth connectivity

  • Min/max temperature: min: -30ºC / -22ºF max: +60 ºC / + 140 ºF

  • Infrared proximity sensors for motion detection

  • Two USB 3 ports

  • One DisplayPort

  • One Serial port

Entry
  • Four dry contact relays with adjustable timings

  • 26-bit Wiegand format card reader

  • Wiegand output terminals for connecting internal card reader to access control system

Power
  • Standard power socket: NEMA 5-15

  • Panel input voltage: 24VDC

  • Standard power consumption: 31W at 24VDC input

  • Maximum power consumption: 65W at 24VDC input

  • Relay max switching current: 5A, relay max

  • Switching power: 1250W

  • Coordinate dedicated electrical circuit on UPS (power conditioned)

Video
  • Adaptive bitrate for up to 1080p HD video transfer

  • 90° field of view

  • Adjustable pan, tilt, and zoom

Touchscreen
  • Antiglare polycarbonate display

  • Capacitive 10-point multitouch

  • Auto-adjusting LED with up to 1000 Nits of brightness

  • Vandal resistant (tested to withstand 225g drop ball test from 1.6 meters)

  • Resolution: 1024 x 600

Network
  • Dual gigabit ethernet ports
  • IP assigned by DHCP (Static IP assignment available)
  • Wireless capabilities

NETWORK REQUIREMENTS GUIDE

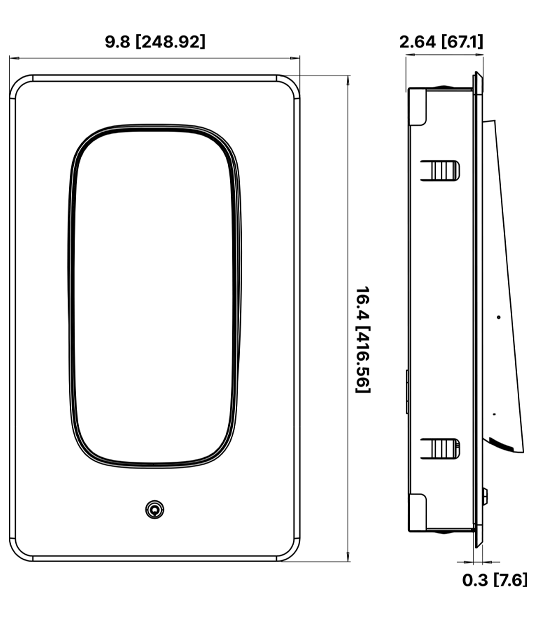

7 recessed video intercom

Certifications
